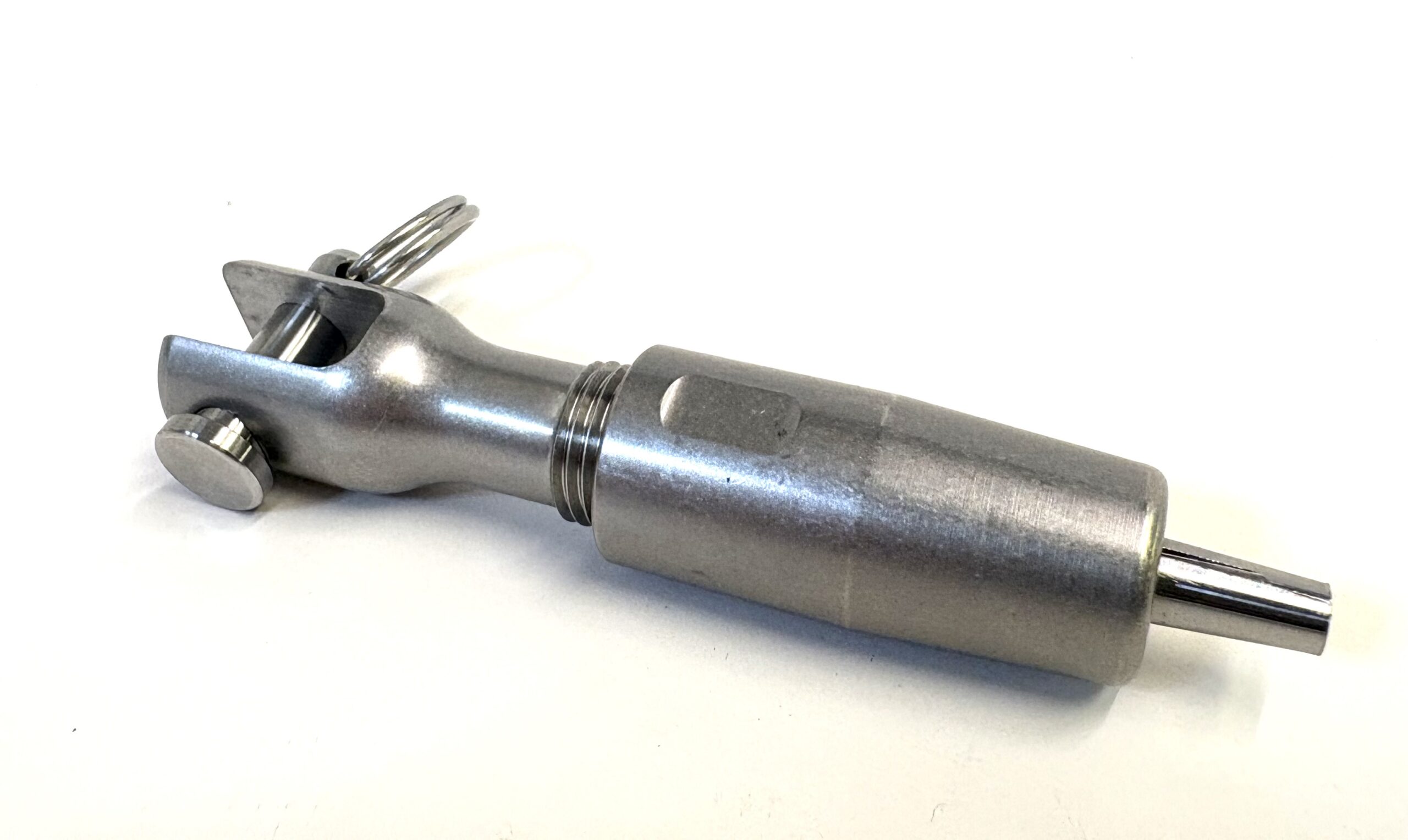

Technical Description: 316 SS Wire Rope Swage Terminal – Jaw Fork Type
This individual Jaw Fork Terminal (Clevis Type) is an articulating fitting engineered for permanent mechanical termination in wire rope assemblies that require precise tensioning and alignment adjustment. Ideal for adjustable rigging components (e.g., wire rope connection, turnbuckle integration, mast base attachments) and structural applications where corrosion resistance against saltwater exposure is critical. The breaking strength of this fitting is designed to exceed the breaking strength of the wire cable being connected.
Key Technical Details
- Material: 316 Stainless Steel (316 SS), offering resistance to pitting and crevice corrosion, vital for saltwater and harsh chemical environments.
- Termination: Designed for cold-formed swaging, establishing a permanent bond intended to meet or exceed the Minimum Breaking Load (MBL) of the cable.
- Function: Features a hinged or fixed fork that connects via a clevis pin to structural tangs or turnbuckles. This design allows for articulation and rotational freedom, facilitating system installation and fine-tuning.
